H-125 Series: Corrosion Resistant Water Softener

Hellenbrand H-125 Water Softener

The Hellenbrand H-125 Series Water Conditioning System is designed with durability and simplicity in mind with no nuts, bolts and screws. Corrosion resistant control valve and body tank increase system lifespan. Hellenbrand water softeners are known for their durability and long-lasting technology and come highly recommended by the experts at Guthrie & Frey. See if the H-125 series water conditioning system is right for your home.

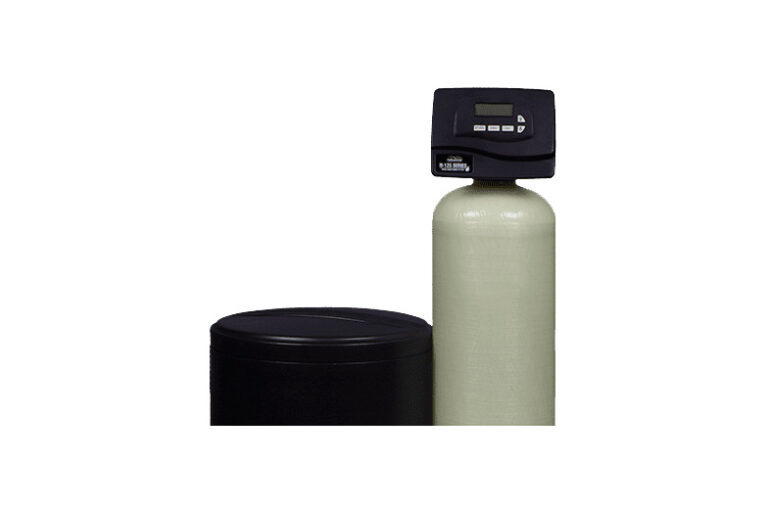

H125 Series Water Softener
Request A Quote
Ask An Expert

  • Product Details:

    • Modular design
    • Non-corrosive value body & intervals
    • One-piece stack assembly
    • Piston operated
    • No nuts, bolts or screws
    • Disassemble and reassemble in minutes

  • Design Options:

    • Single, Twin Parallel
    • Twin Alternating
    • Brine Reclaim
    • No Raw Water Bypass
    • Separate Source Regeneration

  • Meter Accuracy:

    • Model: H125
    • Flow Ranges 0.25-34 GPM
    • Accuracy: ±5%

Download H-125 PDFs

H-125 Series Brochure
H-125 Specifications

  • Features H-125 Series

    • 1.25″ internal porting, provides higher service flows with less pressure drop
    • 12-Volt Operation AC or DC
    • 12-Volt Relay Driver allows multiple dry contact signals
    • H-125 programming options include: variable reserve, fixed reserve, calendar day override, delayed or immediate regeneration.
    • Diagnostics:
      • Days since last regeneration
      • Gallons since last regeneration
      • Gallon reserve capacity last 7 days
      • 63 Days history of daily totals usage
      • Maximum flow rate for the last seven days
      • Total number of regenerations
      • Total days in service
      • Total gallons processed

  • Benefits H-125 Series

    • Electronic Meter Demand with Calendar Day Override
    • Scrolling User Screen shows capacity remaining, time of day and flow rate
    • Service Interval Screen displays preventative maintenance reminder
    • Differential Pressure Switch Capability
    • Fully Programmable Cycle Position and Times
    • Nine Cycle Control
    • Soft Water Brine Tank Re-Fill
    • Multiple Backwash and Rinse Capabilities
    • Quiet Operation
    • Variable Reserve automatically adjusts to changing water usage patterns.
    • Permanent memory backup of all programming
    • 2-1/2 years Time of Day Backup
    • Uses less than $2 of electricity per year

More To Learn About This Water Softener

Common Applications

Common Places for Usage:

  • Agriculture
  • Apartment Buildings
  • Boiler Water Treatment
  • Car Washes
  • Commercial Buildings
  • Condominiums
  • Dairies
  • Factories
  • Hospitals
  • Homes
  • Laundries
  • Mobile Home Parks
  • Motels and Hotels
  • Nursing and Rest Homes
  • Office Buildings
  • Restaurants
  • Schools
new apartment kitchen

  • Going Green: Brine Reclaim

    Brine reclaim returns a portion of reusable brine to the brine tank. When it comes to this kind of efficiency, our units are superior to everything else on the market. The H300 standard electronic package is capable of reclaiming up to 30% of the salt used in regeneration for the next regeneration, where other brands will only return 20-25%. This means more money in your pocket. Salt savings will vary depending on the lbs of salt per cubic foot of resin used to regenerate.

  • Going Green: Water Reclaim

    The H125 standard electronic package is capable of reclaiming much of the water used to regenerate the water softener and re-use that water to flush toilets. This water is typically soft and is free of the salt/brine discharge which is diverted to your standard drain/waste system. A holding tank is installed to reclaim this water, along with a re-pressurization and disinfection system. A separate line is required to re-fill this tank when the reclaim water drops below a certain level between regenerations.
