H-300 Series: Energy Efficient Water Softener

Hellenbrand H-300 Water Softener

The Hellenbrand H-300 is ideal for reduced energy and water consumption. This kind of efficiency will help to extend the longevity of process equipment and heat exchanged systems, reducing the cost of maintenance over time. The H-300 Series has a number of benefits to homeowners saving them money for both electric and maintenance as well as bringing the home safe and clean water.

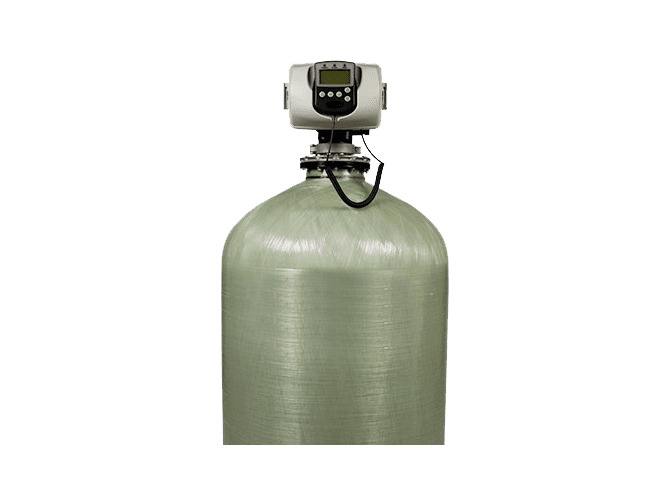

H3OO Series Water Softener
Request A Quote
Ask An Expert

  • Product Details:

    • Modular design
    • Non-corrosive intervals
    • Lead-free brass valve
    • One-piece stack assembly
    • Piston operated
    • Disassemble and reassemble in minutes

  • Design Options:

    • Single
    • Twin
    • Tri-Plex
    • Four-Plex
    • Parallel, Alternating or Demand Recall Configurations.

  • Meter Accuracy:

    • 1.5” Meter 0.5 – 60 gpm
    • 2” Meter 1.5 – 150 gpm
    • Accuracy: ±5%

Download H-125 PDFs

H-300 Series Brochure
H-300 Specifications
  • Close up on a splash of water

    Features H-300 Series

    3.0″ Inlet & Outlet provides higher service flows with less pressure drop

    12-Volt Operation AC or DC

    12-Volt Relay Driver allows multiple dry contact signals

    Several programming options including: variable reserve, fixed reserve, calendar day override, delayed or immediate regeneration.

    Diagnostics:

    Days since last regeneration

    Gallons since last regeneration

    Gallon reserve capacity last 7 days

    63 Days history of daily totals usage

    Maximum flow rate for the last seven days

    Total number of regenerations

    Total days in service

    Total gallons processed

  • Close up on a splash of water

    Benefits H-300 Series

    Electronic Meter Demand with Calendar Day Override

    Scrolling User Screen shows capacity remaining, time of day and flow rate

    Service Interval Screen reminds you to call for preventative maintenance service

    Differential Pressure Switch Capability

    Nine Cycle Control

    Soft Water Brine Tank Refill

    Multiple Backwash and Rinse Capabilities

    Fully Programmable Cycle Position and Times

    Quiet Operation

    Variable Reserve automatically adjusts to changing water usage patterns.

    Permanent memory backup of all programming

    2-1/2 years Time of Day Backup

    Uses less than $2 of electricity per year

More To Learn About This Water Softener

Common Applications

Common Places for Usage:

  • Agriculture
  • Apartment Buildings
  • Boiler Water Treatment
  • Car Washes
  • Commercial Buildings
  • Condominiums
  • Dairies
  • Factories
  • Hospitals
  • Homes
  • Laundries
  • Mobile Home Parks
  • Motels and Hotels
  • Nursing and Rest Homes
  • Office Buildings
  • Restaurants
  • Schools
table setting in a restaurant

Going Green

  • Brine Reclaim

    Brine reclaim returns a portion of reusable brine to the brine tank. When it comes to this kind of efficiency, our units are superior to everything else on the market. The H300 standard electronic package is capable of reclaiming up to 30% of the salt used in regeneration for the next regeneration, where other brands will only return 20-25%. This means more money in your pocket. Salt savings will vary depending on the lbs. of salt per cubic foot of resin used to regenerate.

  • Water Reclaim

    The H300 standard electronic package is capable of reclaiming much of the water used to regenerate the water softener and reuse that water to flush toilets. This water is typically soft and is free of the salt/brine discharge, which is diverted to your standard drain/waste system. A holding tank is installed to reclaim this water, along with a repressurization and disinfection system. A separate line is required to refill this tank when the reclaim water drops below a certain level between regenerations.
